Add Regression Channel Dialog Box

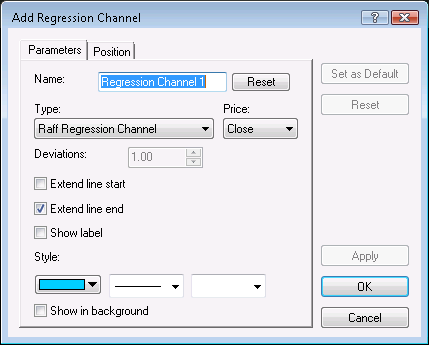

Parameters Tab

• Name: displays the name of the regression channel; the name is shown in the channel label.
• Type: displays the type of the regression channel: Raff Regression Channel or Standard Deviation Channel.
• Price: displays the price that is used to calculate the channel values.
• Deviations: for the Standard Deviation Channel, displays the distance from the regression trend line to the upper and lower lines of the channel in standard deviations.
• Extend line start: if the check box is selected, the channel lines are extended from the start point; otherwise, the lines are not extended from the start point.
• Extend line end: if the check box is selected, the channel lines are extended from the end point; otherwise, the lines are not extended from the end point.
• Show label: if the check box is selected, the channel label is shown; otherwise, the label is hidden.
• Style: displays the color, style and width of the channel lines.
• Show in background: if the check box is selected, the channel is shown in background under the prices; otherwise, the channel is shown above the prices.

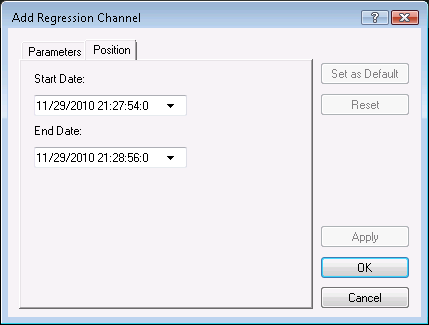

Position Tab

• Start Date: displays the date and time of the first point the channel is drawn through.
• End Date: displays the date and time of the second point the channel is drawn through.

For details, see Add Regression Channel.
