Create OTOCO Order

Brief

The article explains how to create an OTOCO order.

Details

You can create an OTOCO order with the help of the Create Contingent Order dialog box.

To create an OTOCO order

1. Do one of the following:

• On the Trading menu, click Create Contingent Order.
• Right-click anywhere in the chart, and then click Create Contingent Order.

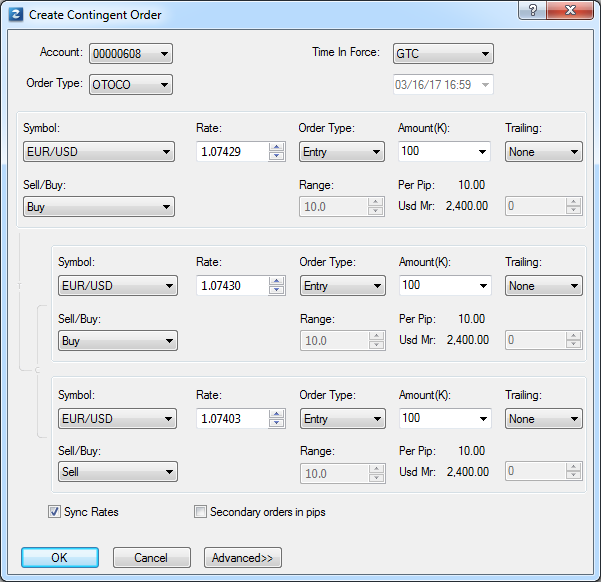

2. The Create Contingent Order dialog box appears. It opens on the order type page of the previously created contingent order. If the value of the Order Type box is OTOCO, leave it as it is, otherwise, click the arrow , and then, in the list that appears, click OTOCO.




3. Specify the order parameters as follows:

• In the Account box, click an account of your choice if you have more than one account.
• In the Time In Force box, click an option of your choice. If you click GTD (Good Till Date), in the date box below, select or type the order's expiration time. By default, it is the time when the current trading day ends.
• In the Symbol boxes, click a symbol of your choice for all orders.

• In the appropriate Rate boxes, select or type price values of your choice for all orders.
• In the Order Type boxes, select an order type for all orders. If you select Range Entry, select or type values of your choice in the appropriate Range boxes.
• In the appropriate Amount (K) boxes, select or type amount values of your choice for all orders.
  The cost of one pip price movement and amount of the used margin of the specified amounts appear in the Per Pip and Usd Mr boxes respectively.
  Note: Depending on the version of your FXCM Trading Station, instead of Amount (K) you can see Currency/Point in this dialog box. You can specify the Amount mode option at your choice in the Options dialog box of your FXCM Trading Station. For details, see the Change Amount Mode article in the FXCM Trading Station Help.

• In the appropriate Trailing box (optional), to make the primary or secondary orders trailing, click Dynamic or Fixed. Otherwise, click None. If you click Fixed, in the adjacent box, select or type the trailing step size in pips.
  If you make the primary order trailing, the rates of its secondary orders can be selected only in pips.
  Note: The box appears in the dialog box only if the Trailing entry orders enabled option under the General Trading heading of the FXCM Trading Station Options dialog box is set to True. If it is set to False, the Trailing box is hidden.
• In the Sell and Buy boxes, select trade operations of your choice for all orders.
• Select the Sync Rates check box if you want the rate of the second secondary order to be calculated automatically while you select or type the rate of the first secondary order and vice versa.
  Note that the option works only if the Symbol boxes of both orders have one and the same value (symbol). Otherwise, the option is disabled.
• Select the Secondary orders in pips check box if you want to set the rate of the secondary order a certain number of pips away from the current market price of its symbol at the moment of the primary order execution. Clear the check box to set the rate of the secondary order in the chart price values.
  Note that the check box is disabled and the secondary order values are displayed only in pips if the primary order Trailing box value is Dynamic or Fixed and the Symbol boxes of all the three orders have one and the same value (symbol). Otherwise, the check box is enabled and you can set the secondary order values either in pips or in the chart price values.

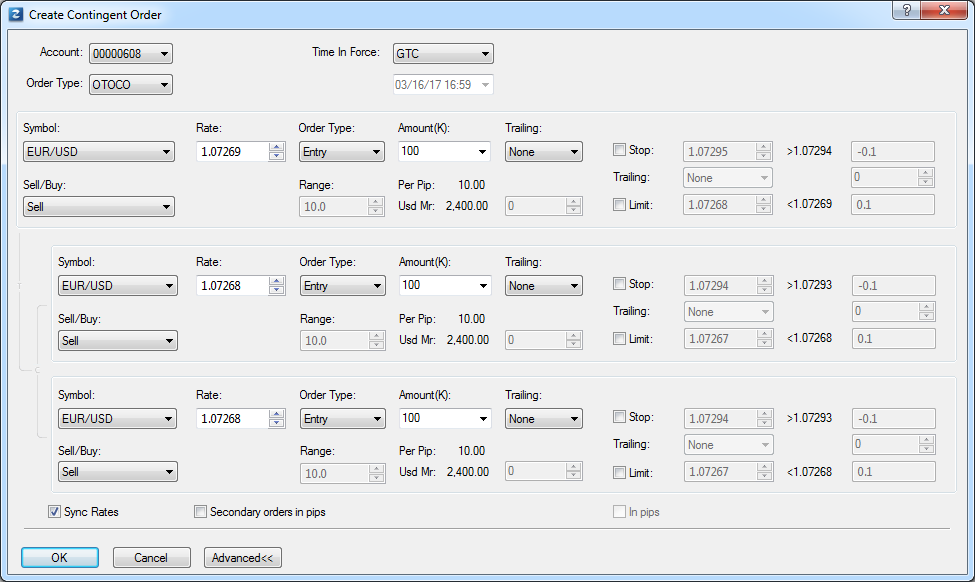

• Clicking the Advanced button expands the dialog box.



  To add a stop and limit order to any order, select appropriate Stop or Limit check boxes and, in the adjacent boxes, select or type rate values of your choice. To specify the values in pips, select the In pips check box at the bottom of the dialog box.
  You can also make your Stop orders trailing by clicking Dynamic or Fixed in the appropriate Trailing box, otherwise, click None. If you click Fixed, in the adjacent box, select or type the trailing step size in pips.
4. Click OK.

Once an OTOCO order is created, its primary order appears on the chart in the form of a line with a label. When the market price hits the primary order, it gets executed, becomes an open position, and Its secondary orders are placed as an OCO order and appear on the chart in the form of lines with labels.
