Gann Fan Properties Dialog Box

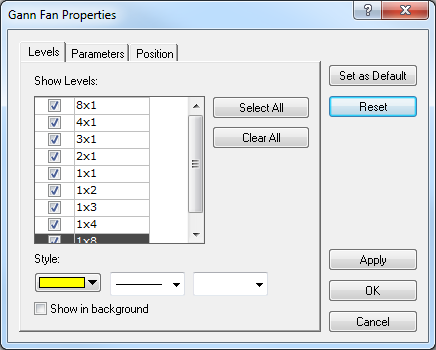

Levels Tab

• Show Levels: if the check box of a Gann fan level is selected, the level is currently shown on the chart; otherwise, the level is hidden.
• Style: displays the current color, style and width of the level lines.
• Show in background: if the check box is selected, the Gann fan is shown in the background behind the prices; otherwise, the Gann fan is shown in front of the prices.

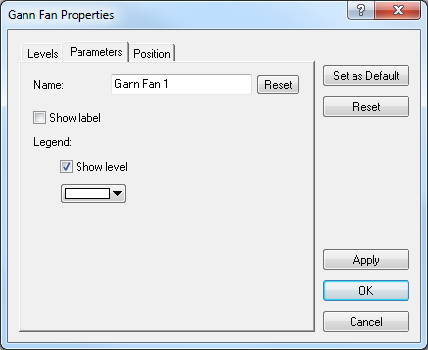

Parameters Tab

• Name: displays the current name of the Gann fan; the name is shown in the Gann fan label.
• Show label: if the check box is selected, the Gann fan label is currently shown; otherwise, the label is hidden.
• Legend includes

• Show level: if the check box is selected, levels are currently indicated on the level lines; otherwise, levels are not indicated. The following color box displays the text color of levels in the legend.

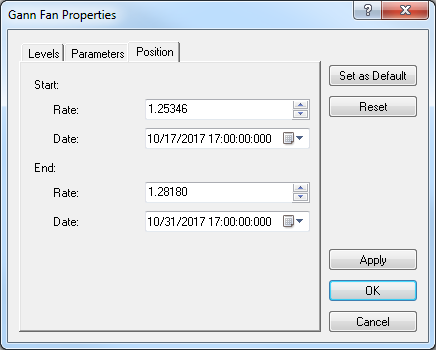

Position Tab

• Start includes

• Rate: the price level at which the Gann fan middle line currently starts.
• Date: the date and time of the beginning of the period in which the Gann fan middle line currently starts.
• End includes

• Rate: the price level at which the Gann fan middle line currently ends.
• Date: the date and time of the beginning of the period in which the Gann fan middle line currently ends.

For details, see Change Gann Fan.
