Change Gann Retracement Properties

To change the properties of a Gann retracement:

1. Do one of the following:

• Double-click any line of the Gann retracement.
• Right-click any line of the Gann retracement, and then click Change 'Gann Retracement Name', where Gann Retracement Name is the name of the Gann retracement.
• See Change Properties/Remove Chart Elements.
2. The Gann Retracement Properties dialog box will appear.

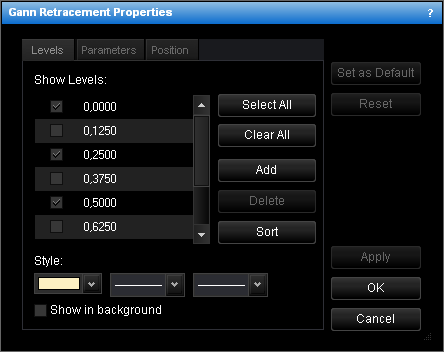

3. Change the Gann retracement levels on the Levels tab:

• To change the set of Gann retracement levels the lines of which will be displayed, select and/or clear the appropriate check boxes.

  Notes:

• To select the full set of levels, click Select All.
• To clear the selection of levels, click Clear All. Note that to show a Gann retracement on the chart, at least one level must be selected.
• To edit a level, click the appropriate row, double-click the current value, type your value in the format 0.0000, and then press ENTER.
• To add a level, click Add. An empty row will be added to the table. Type your value in the format 0.0000, and then press ENTER.
• To remove a level, click the appropriate row in the table, and then click Delete.
• To sort the levels in ascending order, click Sort.
• To change the style of level lines, in the appropriate boxes, click the color, style and width of your choice.
• To show the Gann retracement in background, select the Show in background check box. Otherwise, clear the check box.

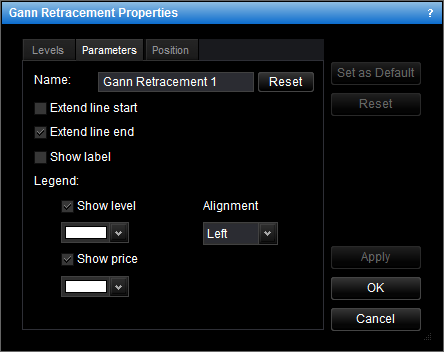

4. Change the Gann retracement parameters on the Parameters tab:



• To change the name of the Gann retracement, in the Name box type a new name.

  Note: To reset the Gann retracement name to default, click Reset.
• To extend the level lines to the left, select the Extend start check box. Otherwise, clear the check box.
• To extend the level lines to the right, select the Extend end check box. Otherwise, clear the check box.
• To show the Gann retracement label, select the Show label check box. Otherwise, clear the check box.
• To show levels in the legend of the level lines, select the Show level check box. Otherwise, clear the check box.
• To change the color of the legend level, click the color of your choice in the appropriate box.
• To show prices in the legend of the level lines, select the Show price check box. Otherwise, clear the check box.
• To change the color of the legend price, click the color of your choice in the appropriate box.
• To change the alignment of the legend, in the Alignment box, select the alignment of your choice.

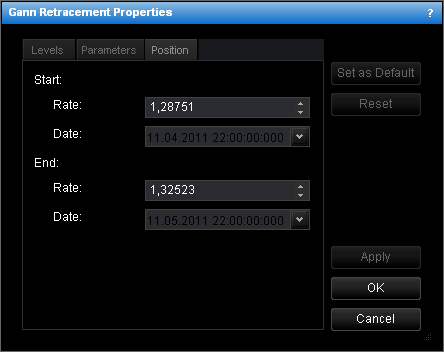

5. Change the Gann retracement position on the Position tab:



• To change the price and date and time at which the 100.00% level starts or 0.00% level ends, in the appropriate Rate and Date boxes, select or type the necessary price and date and time.

  Notes:

• To apply the changed properties (except the name) to all further Gann retracements by default, click Set as Default.
• To reset factory settings for the Gann retracement, click Reset.
6. Click OK.
