Change Rectangle Properties

To change the properties of a rectangle:

1. Do one of the following:

• Double-click the rectangle.
• Right-click the rectangle, and then click Change 'Rectangle Name', where Rectangle Name is the name of the rectangle.
• See Change Properties/Remove Chart Elements.
2. The Rectangle Properties dialog box will appear.

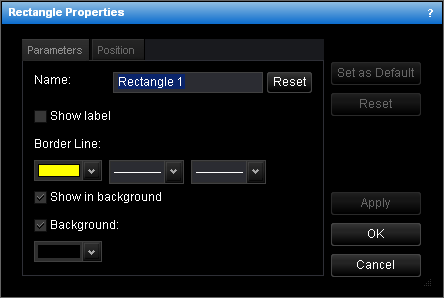

3. Change the rectangle parameters on the Parameters tab:

• To change the name, in the Name box, type a new name.
  Note: To reset the rectangle name to default, click Reset.
• To show the rectangle label, select the Show label check box. Otherwise, clear the check box.
• To change the border line style, in the appropriate boxes of Border Line, click the color, style and width of your choice.
• To show the rectangle in background, select the Show in background check box. Otherwise, clear the check box.
• To show the rectangle background, select the Background check box. Otherwise, clear the check box.
• To change the background color, in the Background box, click the color of your choice.

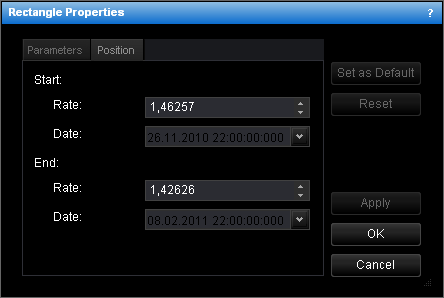

4. Change the rectangle position on the Position tab:



• To change the price and date and time at which the rectangle starts or ends, in the appropriate Rate and Date boxes, select or type the price and date and time.

  Notes:

• To apply the changed properties (except the name) to all further rectangles by default, click Set as Default.
• To reset factory settings for the rectangle, click Reset.
5. Click OK.
