Price Overlay Dialog Box (Backtester)

Symbol Tab

• The table displays the list of symbols selected on the Market Data step whose prices can be overlaid on the chart.
• In main area: if the option is clicked, the price overlay is displayed on the chart.
• In new area: if the option is clicked, the price overlay is displayed in a separate area below the chart.

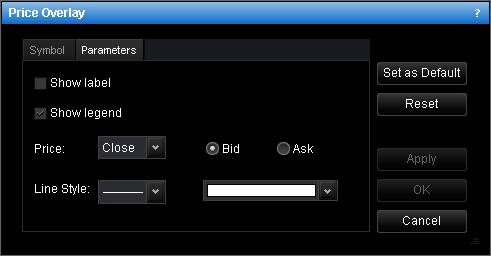

Parameters Tab

• Show legend: if the check box is selected, the legend of the price overlay is displayed. Otherwise, there is no legend.
• Price: displays prices which are displayed by the price overlay - Open, High, Low or Close, and Bid or Ask.

  For price overlaid on the chart:

• Show label: if the check box is selected, the label of the price overlay is displayed. Otherwise, the label is hidden.
• Line Style: displays the price line style and color.

  For a price overlay displayed in a separate area below a line chart:

• Bid Line Color: displays the color of the bid line.
• Ask Line Color: displays the color of the ask line.
• Low Line Color: displays the color of the low line.
• High Line Color: displays the color of the high line.

  For a price overlay displayed in a separate area below a candlestick or bar chart:

• Ascending Candlestick/Bar Color: displays the color of ascending candlesticks or bars.
• Descending Candlestick/Bar Color: displays the color of descending candlesticks or bars.
