Change Fibonacci Fan Properties Dialog Box

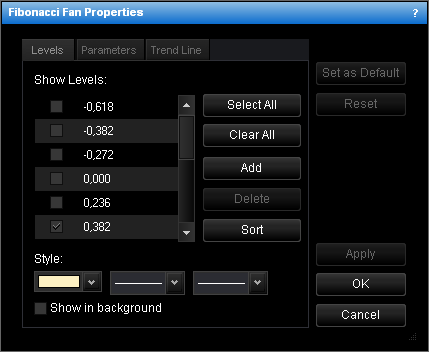

Levels Tab

• Show Levels: if the check box of a Fibonacci fan level is selected, the level is currently shown on the chart; otherwise, the level is hidden.
• Style: displays the current color, style and width of the level lines.
• Show in background: if the check box is selected, the Fibonacci fan is shown in background under the prices; otherwise, the Fibonacci fan is shown above the prices.

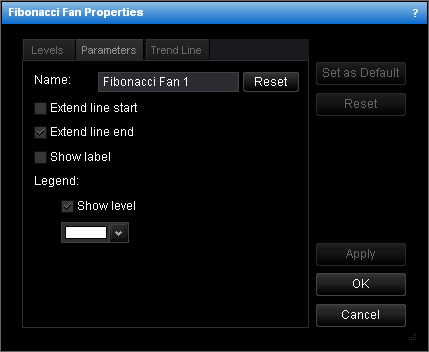

Parameters Tab

• Name: displays the current name of the Fibonacci fan; the name is shown in the Fibonacci fan label.
• Extend start: if the check box is selected, the level lines are currently extended to the left; otherwise, the lines are not extended to the left.
• Extend end: if the check box is selected, the level lines are currently extended to the right; otherwise, the lines are not extended to the right.
• Show label: if the check box is selected, the Fibonacci fan label is currently shown; otherwise, the label is hidden.
• Legend displays

• Show level: if the check box is selected, levels are currently indicated on the level lines; otherwise, levels are not indicated. The following color box displays the text color of levels in the legend.

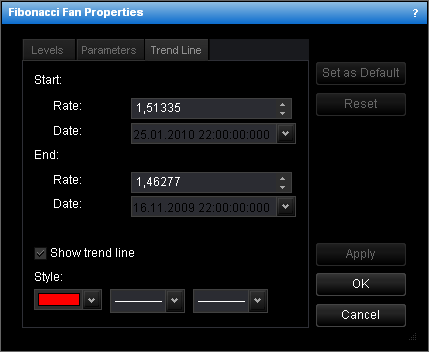

Trend Line Tab

• Start displays

• Rate: the price level at which the trend line currently starts;
• Date: the date and time of the beginning of the period in which the trend line currently starts.
• End displays

• Rate: the price level at which the trend line currently ends;
• Date: the date and time of the beginning of the period in which the trend line currently ends.
• Show trend line: if the check box is selected, the Fibonacci fan trend line is currently shown; otherwise, the trend line is hidden.
• Style: displays the current color, style and width of the trend line.

For details, see Change Fibonacci Fan Properties.
