Show/Hide Current Market Price

Brief

The article describes how to show/hide the current market price on a chart.

Details

The current market price can be indicated on a chart by a horizontal line with a tag.

• If the ask chart is shown, the horizontal line indicates the level of the current ask price. The tag displays the current ask price.
• If the bid chart is shown, the horizontal line indicates the level of the current bid price. The tag displays the current bid price.
• If both ask and bid charts are shown (for tick periods), the two horizontal lines are displayed on the chart.

Note: If the current market price is out of the viewing area, the horizontal line and its tag are not visible. In this case the line can be accessed by means of scrolling and scaling. See Chart Navigation.

In Marketscope the current market price is displayed by a tag (tags) on the price axis by default.

To show/hide the current market price

1. Do one of the following:

• On the File menu, click Options.
• Right-click in the vertical or horizontal scale, and then click Options.
• Right-click in the chart and then click Options.

  * In the FXCM Trading Station, the command is available on the System menu.

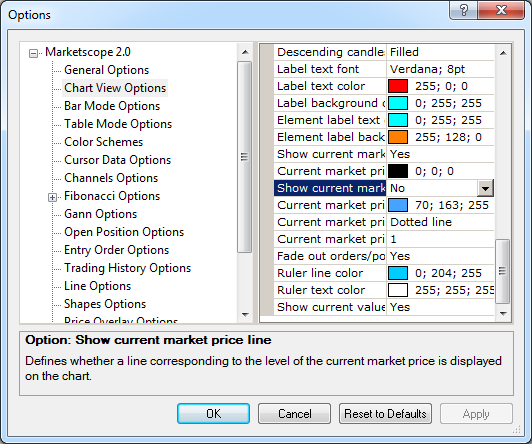

2. The Options dialog box appears.


3. Click Chart View Options.
4. Change the options:

• To show the current market price by a tag (tags) on the price axis, in the list of options, click Show current market price, and then set the option to Yes. Otherwise, set the option to No.
• To show the current market price line, in the list of options, click Show current market price line, and then set the option to Yes. Otherwise, set the option to No.
5. Click OK.

You can change the options of the current market price line and tag. For more information, see Chart Layout Options.
