Add Fibonacci Channel Dialog Box

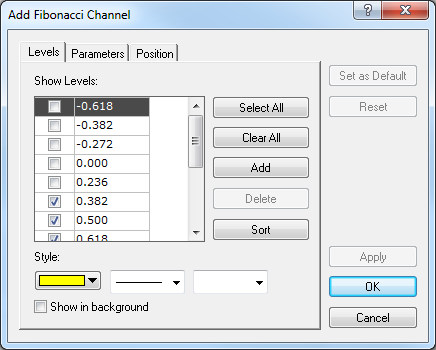

Levels Tab

• Show Levels: if the check box of a Fibonacci channel level is selected, the level is currently shown on the chart; otherwise, the level is hidden.
• Style: displays the current color, style and width of the level lines.
• Show in background: if the check box is selected, the Fibonacci channel is shown in the background behind the prices; otherwise, the Fibonacci channel is shown in front of the prices.

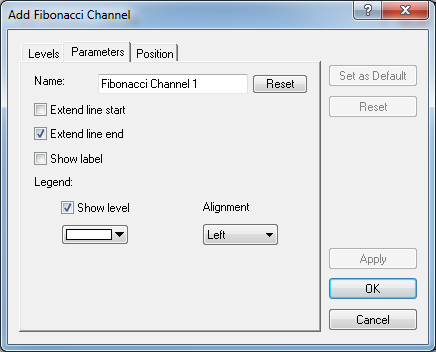

Parameters Tab

• Name: displays the current name of the Fibonacci channel; the name is shown in the Fibonacci channel label.
• Extend line start: if the check box is selected, the level lines are currently extended to the left; otherwise, the lines are not extended to the left.
• Extend line end: if the check box is selected, the level lines are currently extended to the right; otherwise, the lines are not extended to the right.
• Show label: if the check box is selected, the Fibonacci channel label is currently shown; otherwise, the label is hidden.
• Legend includes

• Show level: if the check box is selected, levels are currently indicated on the level lines; otherwise, levels are not indicated. The following color box displays the text color of levels in the legend.

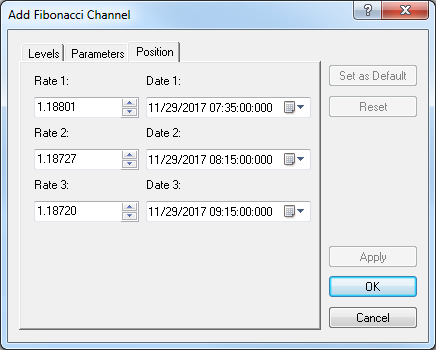

Position Tab

• Rate 1: the price level of the first point the Fibonacci channel goes through.
• Date 1: the date and time of the beginning of the period of the first point the Fibonacci channel goes through.
• Rate 2: the price level of the second point the Fibonacci channel goes through.
• Date 2: the date and time of the beginning of the period of the second point the Fibonacci channel goes through.
• Rate 3: the price level of the third point the Fibonacci channel goes through.
• Date 3: the date and time of the beginning of the period of the third point the Fibonacci channel goes through.

For details, see Add Fibonacci Channel.
