Add Andrews' Pitchfork Dialog Box

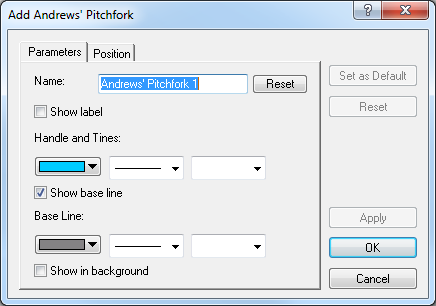

Parameters Tab
- Name: displays the current name of the Andrews' pitchfork; the name is shown in
the Andrews' pitchfork label.
- Show label: if the check box is selected, the Andrews' pitchfork label is
currently shown; otherwise, the label is hidden.
- Handle and Tines: displays the current color, style and width of the handle and
tine lines.
- Show base line: if the check box is selected, the base line is currently shown;
otherwise, the base line is hidden.
- Base Line: displays the current color, style and width of the base line.
- Show in background: if the check box is selected, the Andrews' pitchfork is shown
in the background behind the prices; otherwise, the Andrews' pitchfork is shown in front of the
prices.

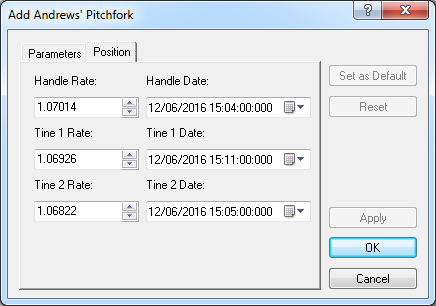

Position Tab
- Handle Rate: displays the price level at which the handle line currently starts.
- Handle Date: displays the date and time of the beginning of the period where the
handle line currently starts.
- Tine 1 Rate: displays the price level at which the first tine line (that is the
tine line that is drawn through the second point) currently starts.
- Tine 1 Date: displays the date and time of the beginning of the period where the
first tine line starts.
- Tine 2 Rate: displays the price level at which the second tine line (that is the
tine line that is drawn through the third point) currently starts.
- Tine 2 Date: displays the date and time of the beginning of the period where the
second tine line currently starts.
For details, see Add Andrews' Pitchfork.
