Add Fibonacci Time Zones Dialog Box

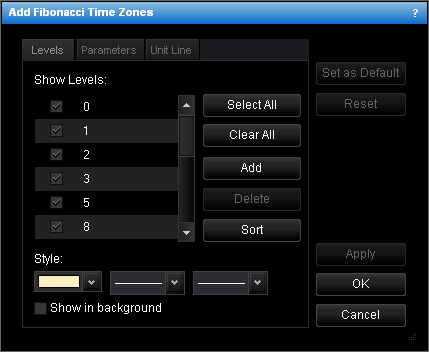

Levels Tab

• Show Levels: if the check box of a Fibonacci time zones level is selected, the level is currently shown on the chart; otherwise, the level is hidden.
• Style: displays the current color, style and width of the level lines.
• Show in background: if the check box is selected, the Fibonacci time zones are shown in background under the prices; otherwise, the Fibonacci time zones are shown above the prices.

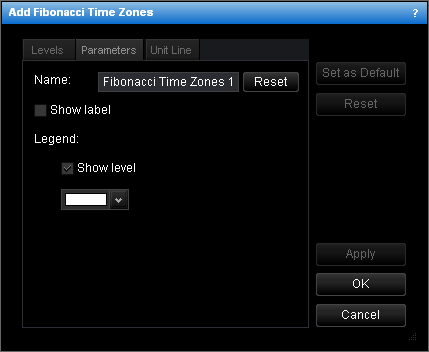

Parameters Tab

• Name: displays the current name of the Fibonacci time zones; the name is shown in the Fibonacci time zones label.
• Show label: if the check box is selected, the Fibonacci time zones label is currently shown; otherwise, the label is hidden.
• Legend displays

• Show level: if the check box is selected, levels are currently indicated on the level lines; otherwise, levels are not indicated. The following color box displays the text color of levels in the legend.

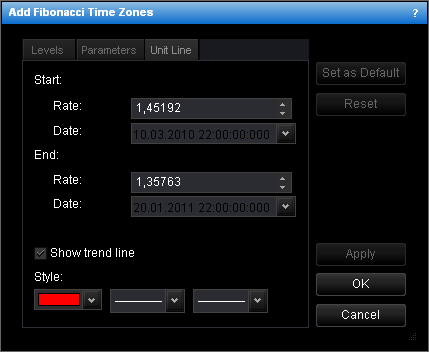

Unit Line Tab

• Start displays

• Rate: the price level at which the unit line currently starts;
• Date: the date and time of the beginning of the period in which the unit line currently starts.
• End displays

• Rate: the price level at which the unit line currently ends;
• Date: the date and time of the beginning of the period in which the unit line currently ends.
• Show unit line: if the check box is selected, the Fibonacci time zones unit line is currently shown; otherwise, the unit line is hidden.
• Style: displays the current color, style and width of the unit line.

For details, see Add Fibonacci Time Zones.
