Price Overlay Properties Dialog Box

Parameters Tab

• Show legend: if the check box is selected, the legend of the price overlay is currently displayed. Otherwise, there is no legend.
• Price: displays prices which are currently displayed by the price overlay - Open, High, Low or Close, and Bid or Ask.

  For price overlaid on the chart:

• Show label: if the check box is selected, the label of the price overlay is currently displayed. Otherwise, the label is hidden.
• Line Style: displays the current price line style and color.

  For a price overlay displayed in a separate area below a line chart:

• Bid Line Color: displays the current color of the bid line.
• Ask Line Color: displays the current color of the ask line.
• Low Line Color: displays the current color of the low line.
• High Line Color: displays the current color of the high line.
  For a price overlay displayed in a separate area below a candlestick or bar chart:

• Ascending Candlestick/Bar Color: displays the current color of ascending candlesticks or bars.
• Descending Candlestick/Bar Color: displays the current color of descending candlesticks or bars.

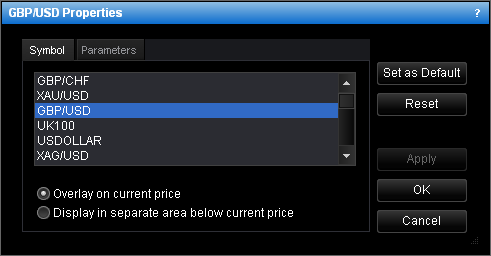

Symbol Tab

• The table displays the list of currently subscribed symbols prices of which can be overlaid on the current chart.
• Overlay on current price: if the option is clicked, the price overlay is currently displayed on the current chart.
• Display in separate area below current price: if the option is clicked, the price overlay is currently displayed in a separate area below the current chart.

For details, see Price Overlaying.
